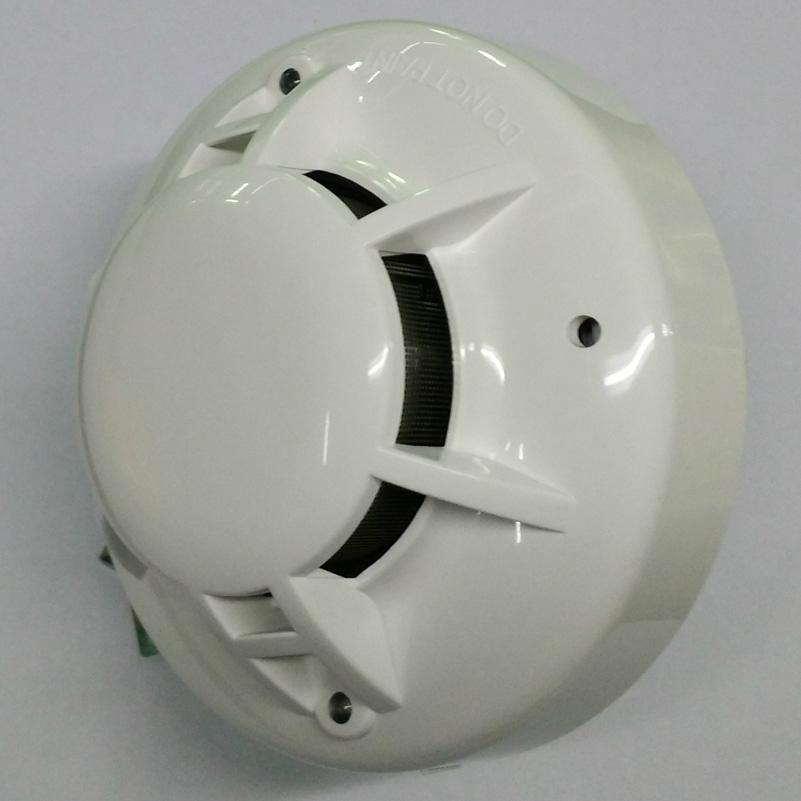

YT102 Conventional Photoelectric Smoke Sensors
General
YT102 Conventional Smoke Detector, Operates by Advanced MCU Expert Algorithm Software.
Key Specifications/Special Features
They work perfectly with all conventional intelligent fire control panels
Dual LEDs for 360-degree visibility
Advanced MCU Expert Algorithm Software.
Easy installation and maintenance
Durable sensor head, no need for replacement
SMD circuit board design-satisfactory quality and reliability guaranteed
SPECIFICATIONS
Operating Voltage Range: 9 to 28VDC Volts Non-polarized
Standby Current: ≤60µA @ 24 VDC Maximum
Alarm Current (LED on: ) ≤30mA @ 24 VDC
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range: 14°F to 120°F (-10°C to 49°C)
Adjustable Sensitivity: 1.06±.26%FT.
Height: 2.2˝ (55 mm) installed in Base Diameter: 4.0˝ (103 mm)
Weight: 5.5 oz. (155 g)
