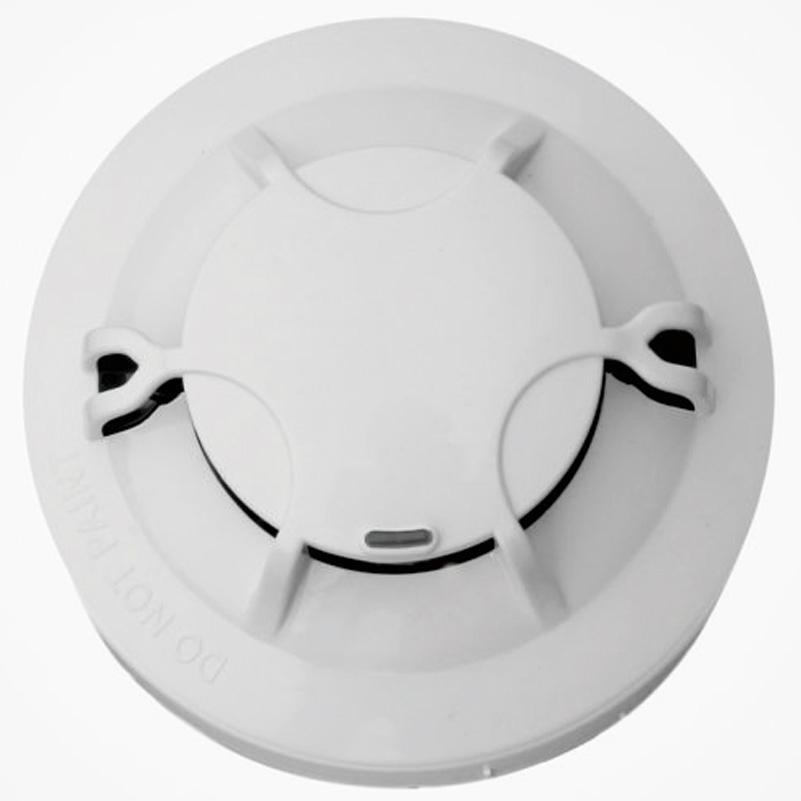

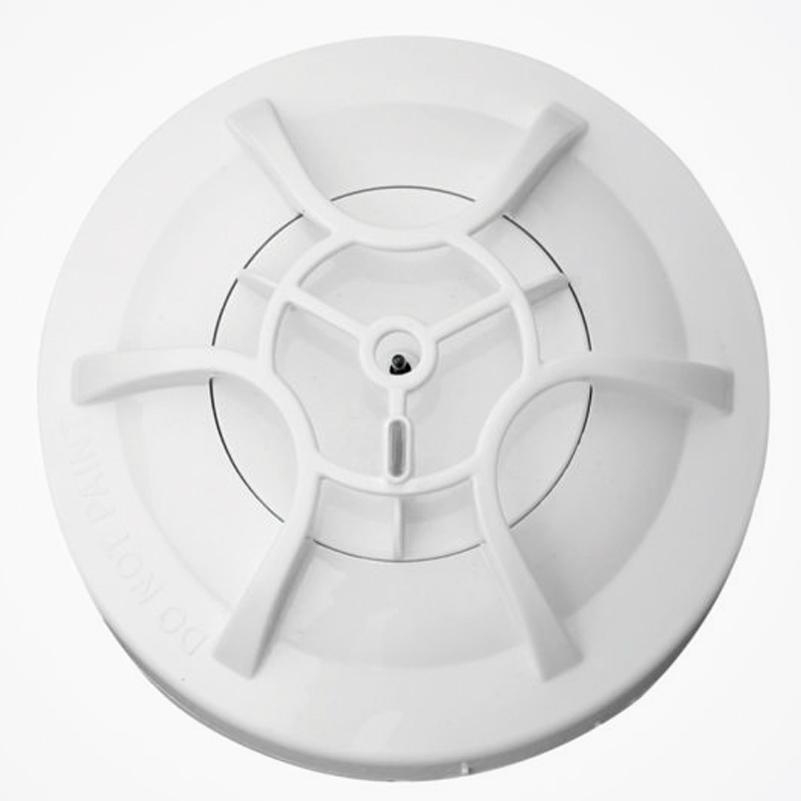

- Intelligent Rate of Rise & Fixed Temperature Heat Detector
Advanced single-chip microcomputer technology
Non-polarized two-wire
Electronically addressed in field
Indoor garage, kitchen, boiler room, generator room, drying room and other places
Technical Specifications
Operating voltage:
Loop 24V(16V～28V)
Operating current:
Standby current: ≤0.3mA
Alarm current: ≤0.8mA
Operating Environment:
Temperature: -10°C～+50°C
Relative Humidity: ≤95%, non-condensing
Indicator: Red
Flashes when polling
Illuminates in alarm
Ingress protection rating: IP33
Material and color of enclosure: ABS; Milky white
Programming method: Electronically programming
Code range: One address is within 1～255
Weight: About 110g
Mounting hole distance: 60mm
Dimension: Diameter 100mm, Height 50mm (with base)
