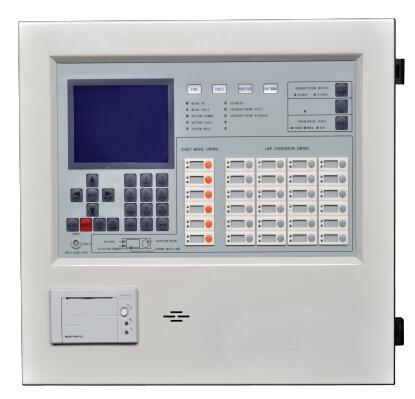

Addressable fire alarm control panel (FACP)2Loops
General Description
The fire alarm control panel is featuring good performance,flexible configuration and easy operation.
check information of alarm ,fault and other operations is displayed by big LCD screen,and can be printered out by its built-in printer the control panel field programmable,maximun support 484 point two loop,If Change installation,It can be extended to 64 loops,It can be connected to 15488 devices.as neededit works with all our companydetectors,call points,sounder strobes,modules and fi-\reman`scontrol panels to realize automatic fire alarm and control.
Features:
The panel has 2 loops in standard configuration,and one loop can access 242 detection devices (FW series ). If the installation mode is changed, the extended loop can be extended to 64 loops and can be connected to 15488 detectors.
The panel has 6 sets of direct start buttons, which correspond to 6 sets of DC24V output and 6 sets of feedback access contacts,and 24 sets of addressable start buttons.
The panel is equipped with two DC12V battery backup to ensure the system can operate normally without ac power.
The panel have one RS-232 interface for PC panel conguration tool.have two RS485 communication port for other external device.
The panel is connected to the computer through RS232, and the loop information and linkage information can equipment .
The panel have micro printer can automatically print out fire alarm information, fault information, etc.
Specifications
Primary AC 220VAC 50/60 Hz
Main supply output voltage(VDC) 27VDC&32VDC
Main supply output current 2.5A &27VDC and 0.3A &32VDC
Minimum Battery Size 2 x 12V
Required DC12V/7Ah
Battery charging voltage(VDC) 27VDC
Battery charging current 700mA
1Amp@24VDC
DC24V Connector volatge output 1Amp@24VDC
Sounder Connector volatge output
Fire feedback input end of Line Resistor(Ohms) 10K
Fire feedback input Contacts capacity 2 Amp@24VDC
Computer interfa USB&RS232
Graphical LCD 320X240
Operating Humidity Range 10% to 93% Relative Humidity,
Non-condensing
Operating Voltage Range -10℃to 50℃
FACP Dimensions(L*W*D) 470mm*130mm*420mm
FACP Weight 16.8kg
Packaging Dimensions(L*W*D) 580mm*220mm*520mm
Gross Weight 17.5kg
