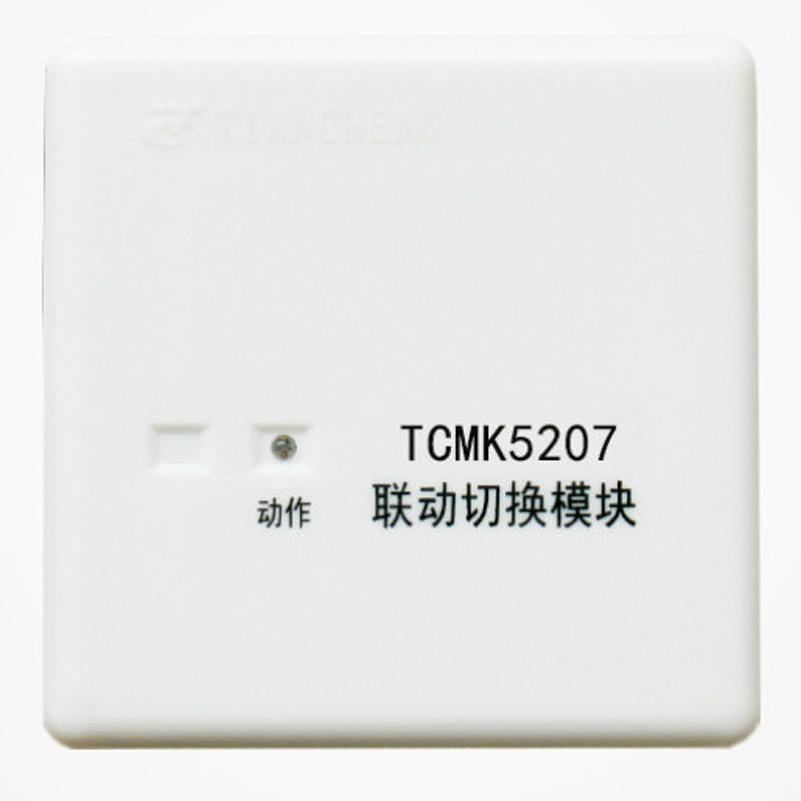

- TCMK5207 Linkage Switchover Module
Used for the start and stop of important devices
Two-wire to the multi-wire control panel; four-wire to the field device
Compatible with TC5013 multi-line control panel which has open circuit and short circuit detection function
Providing a set of passive normally open and normally close contact
Plug-in structure, reliable contact, convenient for engineering
Technical Specifications
Operating voltage:
Starting voltage: DC24V (DC20V～DC28V)
Operating current:
Standby current: ≤4.5mA
Action current: ≤45mA
Operating Environment:
Temperature: -10°C～+50°C
Relative Humidity: ≤95%, non-condensing
Output capacity: 5A/AC220V or 5A/DC24V
Material and color of enclosure: ABS; Ivory white
Weight: About 110g (with base)
Mounting hole distance: 60mm
Dimension (L×W×H): 86mm×86mm×38mm (with base)
